Create basic cluster with Kubeadm on AWS EC2 Instance

July 5, 2025 · 6 min read

Software Engineer

Installing Kubernetes 1.31 and create a cluster using kubeadm (with Containerd and Calico CNI), here's for setting up a basic cluster (1 master + N workers):

This guide sets up an Ubuntu EC2 instance as a Kubernetes node using containerd as the container runtime and Calico as the CNI (network plugin). It supports Kubernetes v1.31.

🖥️ EC2 Instance Setup for Kubeadm

Follow these steps to launch and configure EC2 instances for setting up a Kubernetes cluster using kubeadm.

✅ Step 1: Launch EC2 Instances

Login to AWS Console
Navigate to EC2 > Instances > Launch Instance
Configure the instance as below:

Setting Value
Name Kubernetes
OS Ubuntu 24.04 LTS
Instance Type t3.medium
Key Pair Create or select an existing
Security Group Create or select one (see below)

Setting	Value
Name	`Kubernetes`
OS	`Ubuntu 24.04 LTS`
Instance Type	`t3.medium`
Key Pair	Create or select an existing
Security Group	Create or select one (see below)

🔐 Step 2: Create Security Group

Go to VPC > Security > Security Groups
Click Create Security Group
Configure like below:
- Security Group Name: kubernetes-security

🔽 Inbound Rules

Type	Protocol	Port Range	Source	Description
SSH	TCP	22	Anywhere (0.0.0.0/0)	For SSH access
All Traffic	All	All	Custom (your VPC CIDR)	Allow all communication between nodes

📝 Note: If you're testing, you can temporarily use Anywhere for "All Traffic" but limit it for production.

🔼 Outbound Rules

Type	Protocol	Port Range	Destination	Description
All Traffic	All	All	Anywhere (0.0.0.0/0)	Allow all outgoing traffic

🛠️ Step 3: Finalize Instance Launch

On the Launch Instance page, under Number of Instances of summary section, set it to 2

🔸 One will be used as Control Plane, the other as Worker Node
Select the kubernetes-security group you just created.
Use the same key pair for both instances.

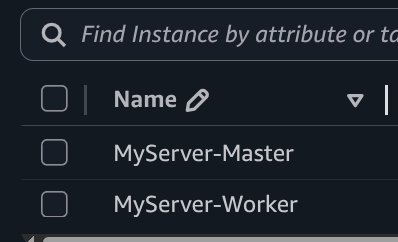

Once the instances are launched, rename them for clarity:
- controlplane
- workernode

example: alt text

Prerequisites for Using Kubeadm

Before using Kubeadm to initialize your Kubernetes cluster, ensure that the following requirements are available:

Operating System: Ubuntu, CentOS, or other Linux distributions (with a supported kernel version).
At least 2 GB of RAM for the master node.
At least 1 CPU (for both the master and worker nodes).

Connect both instances and walkthrough below detailed guide.

🚀 Setup Kubeadm on EC2 instances

Ensure these are done on all nodes (control plane and workers):

🧱 1. Update System Packages

sudo apt-get update
sudo apt-get upgrade -y

📦 2. Install Required Packages

sudo apt-get install -y apt-transport-https ca-certificates curl software-properties-common gnupg2

🔧 3. Disable Swap (Required for K8s)

sudo swapoff -a
sudo sed -i '/ swap / s/^\(.*\)$/#\1/g' /etc/fstab

✅ Why? Kubernetes requires swap to be disabled for optimal memory management.

📦 4. Install and Configure `containerd`

sudo apt-get install -y containerd
sudo mkdir -p /etc/containerd
sudo containerd config default | sudo tee /etc/containerd/config.toml > /dev/null

Enable SystemdCgroup:

sudo sed -i 's/SystemdCgroup = false/SystemdCgroup = true/g' /etc/containerd/config.toml

Restart and enable service:

sudo systemctl restart containerd
sudo systemctl enable containerd

📦 5. Add Kubernetes v1.31 APT Repository

curl -fsSL https://pkgs.k8s.io/core:/stable:/v1.31/deb/Release.key |
sudo gpg --dearmor -o /etc/apt/keyrings/kubernetes-apt-keyring.gpg
echo 'deb [signed-by=/etc/apt/keyrings/kubernetes-apt-keyring.gpg] https://pkgs.k8s.io/core:/stable:/v1.31/deb/ /' | sudo tee /etc/apt/sources.list.d/kubernetes.list

📦 6. Install Kubernetes Components

sudo apt-get update
sudo apt-get install -y kubelet kubeadm kubectl
sudo apt-mark hold kubelet kubeadm kubectl

✅ apt-mark hold ensures these packages aren’t upgraded unintentionally.

🧠 7. Load Required Kernel Modules

cat <<EOF | sudo tee /etc/modules-load.d/k8s.conf
overlay
br_netfilter
EOF

sudo modprobe overlay
sudo modprobe br_netfilter

🌐 8. Configure Network Settings for Kubernetes

cat <<EOF | sudo tee /etc/sysctl.d/k8s.conf
net.bridge.bridge-nf-call-iptables  = 1
net.bridge.bridge-nf-call-ip6tables = 1
net.ipv4.ip_forward                 = 1
EOF

sudo sysctl --system

[!NOTE] Kubernetes Setup Script The above can be saved as kubernetes-setup.sh file. You can run this on worker nodes to avoid redundancy.

🧭 Next Steps (Master Node)

1️⃣ Initialize Kubernetes Control Plane

sudo kubeadm init --pod-network-cidr=192.168.0.0/16 --apiserver-advertise-address=$PRIVATE_IP

2️⃣ Set up `kubectl` for your user

mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config

3️⃣ Install Calico CNI (For v1.31 Compatibility)

kubectl create -f https://raw.githubusercontent.com/projectcalico/calico/v3.28.1/manifests/custom-resources.yaml
kubectl apply -f https://raw.githubusercontent.com/projectcalico/calico/v3.28.1/manifests/calico.yaml

4️⃣ Check pods Status

kubectl get pods -A

5️⃣ Verify Kubernetes Cluster Status

kubectl get nodes

🧩 Join Worker Nodes

📍 1. Run the same setup script on all worker nodes.

[!NOTE] Like mentioned above, once you create kubernetes-setup.sh file on worker node. Use below command to make script ready to run and use.

chmod +x kubernetes-setup.sh

./kubernetes-setup.sh

📍 2. On master node instance, get the join command:

kubeadm token create --print-join-command

📍 3. Run the join command on worker node

Copy paste the join command generated on MasterNode

sudo kubeadm join <master-ip>:6443 --token <token> --discovery-token-ca-cert-hash sha256:<hash>

📍 4. Verify from Master

kubectl get nodes

[!Seperate instances for control plane and worker node] If you're intend to have separate instance for control plane and workernode with separate security groups for your nodes make sure these ports are added as inbound rules.

🔐 AWS EC2 Security Group Settings

Ensure the following ports are open between your EC2 nodes:

Port	Purpose
6443	Kubernetes API Server
2379-2380	etcd
10250	Kubelet API
10251	kube-scheduler
10252	kube-controller-manager
179	Calico BGP

✅ Wrapping Up

That’s it!!! your kubeadm setup on EC2 is ready!

You now have a basic Kubernetes cluster with a control plane and a worker node. This setup is great for getting hands-on experience and understanding how Kubernetes works under the hood.

Feel free to explore more, try deploying apps, and break things to learn.

Thanks for following along. I really hope this guide helped! 🙌
